PFA / FEP LINED TEE ("T"Connection)
 | Lined Tee connections are available in two configuration, equal and unequal. |
| Lining of PFA or FEP as per customer specifications. |
| Lining thickness of 3mm. |

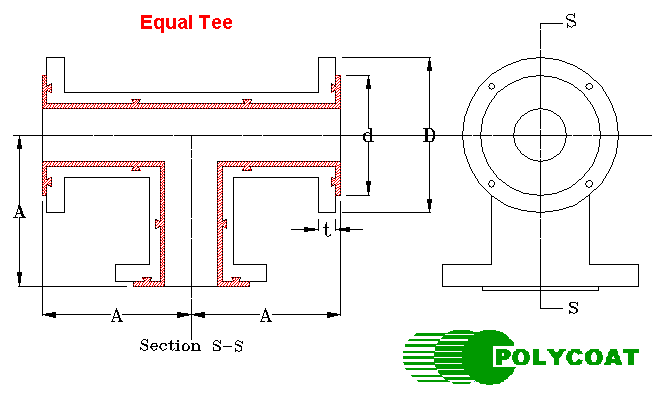

TEFLON Lined Equal TEE
Dimension Chart
|
Nominal Bore |
Lining Thickness |
A |
D |
d |
t |
|
|
Inches |
MM |
|||||
|
1 |
25 |
3 |
89 |
108 |
51 |
14.5 |
|
1 ½ |
40 |
3 |
102 |
127 |
73 |
17.5 |
|
2 |
50 |
3 |
114 |
152 |
92 |
19.5 |
|
3 |
80 |
3 |
140 |
191 |
127 |
24 |
|
4 |
100 |
4 |
165 |
229 |
157 |
24 |
|
6 |
150 |
5 |
203 |
279 |
216 |
25.5 |
|
8 |
200 |
6.5 |
229 |
343 |
270 |
29 |
|
10 |
250 |
7.5 |
279 |
406 |
324 |
30.5 |
|
12 |
300 |
8.5 |
305 |
483 |
381 |
32 |
Standard Tee confirm to the following
| "Tee" body will be S.S. , W.C.B. or C.I. Class 150# |
| "Tee" rating will be Schedule 40 ( Seamless Pipe ) |
| Tee’s all flanges will be 150# |
| Tee’s all flanges drilled to be ANSI B 16.5 |
|
LINING SPECIFICATION |
|
|
LINING MATERIAL |
PFA / FEP |
|
LINING THICKNESS |
3 MM ALL WETTED PARTS |
|
TEMP. WITHSTAND |
FEP 205°C MAX |
|
TEST PRESSURE |
20 Kg / Cm² |
| SPARK TEST |
15 KVDC |

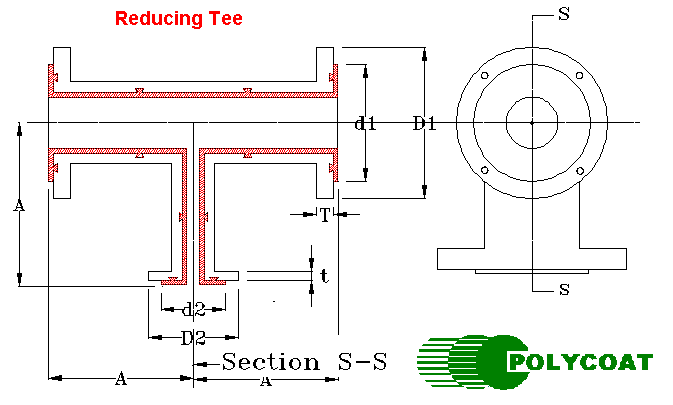

TEFLON Lined Reducing (Unequal) TEE
Dimension Chart
| Nominal Bore Inches mm |
Lining Thickness |
A |
D1 |
d1 |
D2 |
d2 |
T |
t |
|
|
1 ½ x 1 |
40 x 25 |
3 |
102 |
127 |
73 |
108 |
51 |
17.5 |
14.5 |
|
2 x 1 |
50 x 25 |
3 |
114 |
152 |
92 |
108 |
51 |
19.5 |
14.5 |
|
2 x 1 ½ |
50 x 40 |
3 |
114 |
152 |
92 |
127 |
73 |
19.5 |
17.5 |
|
3 x 1 |
80 x 25 |
3 |
140 |
191 |
127 |
108 |
51 |
24 |
14.5 |
|
3 x 1 ½ |
80 x 40 |
3 |
140 |
191 |
127 |
127 |
73 |
24 |
17.5 |
|
4 x 1 |
100 x 25 |
4 |
165 |
229 |
157 |
108 |
51 |
24 |
14.5 |
|
4 x 1 ½ |
100 x 40 |
4 |
165 |
229 |
157 |
127 |
73 |
24 |
17.5 |
|
4 x 2 |
100 x 50 |
4 |
165 |
229 |
157 |
152 |
92 |
24 |
19.5 |
|
4 x 3 |
100 x 80 |
4 |
165 |
229 |
157 |
191 |
127 |
24 |
24 |
|
6 x 1 |
150 x 25 |
5 |
203 |
279 |
216 |
108 |
51 |
25.5 |
14.5 |
|
6 x 1 ½ |
150 x 40 |
5 |
203 |
279 |
216 |
127 |
73 |
25.5 |
17.5 |
|
6 x 2 |
150 x 50 |
5 |
203 |
279 |
216 |
152 |
92 |
25.5 |
19.5 |
|
6 x 3 |
150 x 80 |
5 |
203 |
279 |
216 |
191 |
127 |
25.5 |
24 |
|
6 x 4 |
150 x 100 |
5 |
203 |
279 |
216 |
229 |
157 |
25.5 |
24 |
|
8 x 2 |
200 x 50 |
6.5 |
229 |
343 |
270 |
152 |
92 |
29 |
19.5 |
|
8 x 3 |
200 x 80 |
6.5 |
229 |
343 |
270 |
191 |
127 |
29 |
24 |
|
8 x 4 |
200 x 100 |
6.5 |
229 |
343 |
270 |
229 |
157 |
29 |
24 |
Standard Reducing Tee confirm to the following
| "Reducing Tee" body will be S.S. , W.C.B. or C.I. Class 150# |
| "Reducing Tee " rating will be Schedule 40 ( Seamless Pipe ) |
| Reducing Tee’s all flanges will be 150# |
| Reducing Tee’s all flanges drilled to be ANSI B 16.5 |
|
LINING SPECIFICATION |
|
|
LINING MATERIAL |
PFA / FEP |
|
LINING THICKNESS |
3 MM ALL WETTED PARTS |
|
TEMP. WITHSTAND |
FEP 205°C MAX |
|
TEST PRESSURE |
20 Kg / Cm² |
| SPARK TEST |
15 KVDC |
All dimensions are in mm, unless specified.
