Reducers are used to connect lines of two unequal sizes.

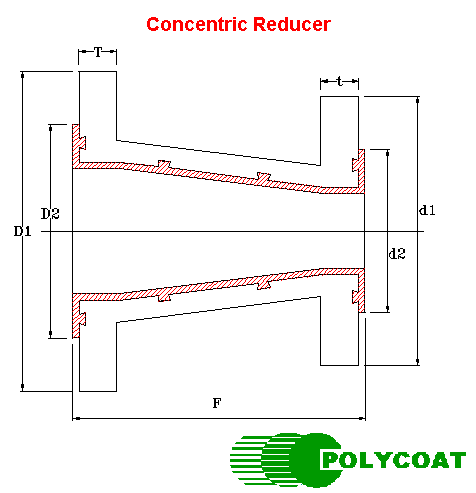

TEFLON LINED CONCENTRIC REDUCER
|
Nominal Bore Inches MM |
Lining Thickness |
F (mm) |
D1 (mm) |
d1 (mm) |
D2 (mm) |
d2 (mm) |
T (mm) |
t (mm) |
|
|
1 ½ x 1 |
40 x 25 |
3 |
114 |
127 |
108 |
73 |
51 |
17.5 |
14.5 |
|
2 x 1 |
50 x 25 |
3 |
127 |
152 |
108 |
92 |
51 |
19.5 |
14.5 |
|
2 x 1 ½ |
50 x 40 |
3 |
127 |
152 |
127 |
92 |
73 |
19.5 |
17.5 |
|
3 x 1 |
80 x 25 |
3 |
152 |
191 |
108 |
127 |
51 |
24 |
14.5 |
|
3 x 1 ½ |
80 x 40 |
3 |
152 |
191 |
127 |
127 |
73 |
24 |
17.5 |
|
3 x 2 |
80 x 50 |
4 |
152 |
191 |
152 |
127 |
92 |
24 |
19.5 |
|
4 x 2 |
100 x 50 |
4 |
178 |
229 |
152 |
157 |
92 |
24 |
19.5 |
|
4 x 3 |
100 x 80 |
4 |
178 |
229 |
191 |
157 |
127 |
24 |
24 |
|
6 x 3 |
150 x 80 |
5 |
229 |
279 |
191 |
216 |
127 |
25.5 |
24 |
|
6 x 4 |
150 x 100 |
5 |
229 |
279 |
229 |
216 |
157 |
25.5 |
24 |
|
8 x 4 |
200 x 100 |
6 |
279 |
343 |
229 |
270 |
157 |
29 |
24 |
|
8 x 6 |
200 x 150 |
6.5 |
279 |
343 |
279 |
270 |
216 |
29 |
25.5 |
|
10 x 6 |
250 x 150 |
7-7.5 |
305 |
406 |
279 |
324 |
216 |
30.5 |
25.5 |
|
10 x 8 |
250 x 200 |
7-7.5 |
305 |
406 |
343 |
324 |
270 |
30.5 |
29 |
|
12 x 8 |
300 x 200 |
7.5-8 |
356 |
483 |
343 |
381 |
270 |
32 |
29 |
|
12 x 10 |
300 x 250 |
7.5-8 |
356 |
483 |
406 |
381 |
324 |
32 |
30.5 |
Standard Concentric Reducer confirm to the following
 | Concentric Reducer’s body will be C.I., W.C.B or S.S. 150#. |
| Concentric Reducer’s all flanges will be 150# |
| Concentric Reducer’s all flanges drilled to be ANSI B 16.5 |
|
LINING SPECIFICATION |
|
|
LINING MATERIAL |
TEFLON / FEP |
|
LINING THICKNESS |
3to8 MM ALL WETTED PARTS |
|
TEMP. WITHSTAND |
205°C TEMP. MAX. |
|
TEST PRESSURE |
20 Kg / Cm² |
| SPARK TEST | 15 KVDC |

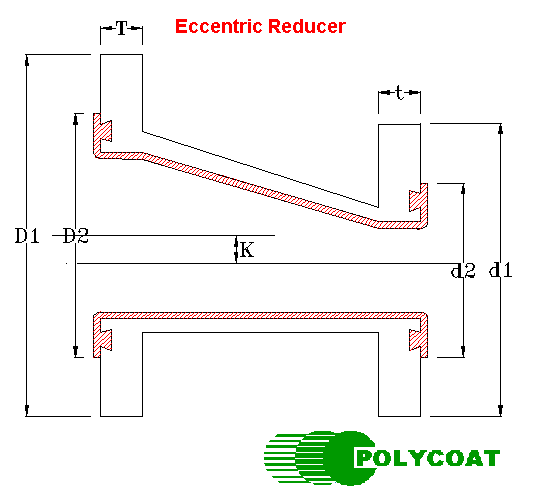

PFA /FEP LINED ECCENTRIC REDUCER
|
Nominal Bore Inches mm |
Lining Thickness |
F (mm) |
K (mm) |
D1 (mm) |
d1 (mm) |
D2 (mm) |
d2 (mm) |
T (mm) |
t (mm) |
|
|
1 ½ x 1 |
40 x 25 |
3 |
114 |
7 |
127 |
108 |
73 |
51 |
17.5 |
14.5 |
|
2 x 1 |
50 x 25 |
3 |
127 |
13 |
152 |
108 |
92 |
51 |
19.5 |
14.5 |
|
2 x 1 ½ |
50 x 40 |
3 |
127 |
7 |
152 |
127 |
92 |
73 |
19.5 |
17.5 |
|
3 x 1 |
80 x 25 |
3 |
152 |
20 |
191 |
108 |
127 |
51 |
24 |
14.5 |
|
3 x 1 ½ |
80 x 40 |
3 |
152 |
20 |
191 |
127 |
127 |
73 |
24 |
17.5 |
|
3 x 2 |
80 x 50 |
4 |
152 |
15 |
191 |
152 |
127 |
92 |
24 |
19.5 |
|
4 x 2 |
100 x 50 |
4 |
178 |
25 |
229 |
152 |
157 |
92 |
24 |
19.5 |
|
4 x 3 |
100 x 80 |
4 |
178 |
10 |
229 |
191 |
157 |
127 |
24 |
24 |
|
6 x 3 |
150 x 80 |
5 |
229 |
40 |
279 |
191 |
216 |
127 |
25.5 |
24 |
|
6 x 4 |
150 x 100 |
5 |
229 |
25 |
279 |
229 |
216 |
157 |
25.5 |
24 |
|
8 x 4 |
200 x 100 |
6 |
279 |
50 |
343 |
229 |
270 |
157 |
29 |
24 |
|
8 x 6 |
200 x 150 |
6.5 |
279 |
25 |
343 |
279 |
270 |
216 |
29 |
25.5 |
|
10 x 6 |
250 x 150 |
7-7.5 |
305 |
50 |
406 |
279 |
324 |
216 |
30.5 |
25.5 |
|
10 x 8 |
250 x 200 |
7-7.5 |
305 |
25 |
406 |
343 |
324 |
270 |
30.5 |
29 |
|
12 x 8 |
300 x 200 |
7.5-8 |
356 |
50 |
483 |
343 |
381 |
270 |
32 |
29 |
|
12 x 10 |
300 x 250 |
7.5-8 |
356 |
25 |
483 |
406 |
381 |
324 |
32 |
30.5 |
Standard Eccentric Reducer confirm to the following
| Eccentric Reducer’s body will be C.I., W.C.B or S.S. 150#. |
| Eccentric Reducer’s all flanges will be 150# |
| Eccentric Reducer’s all flanges drilled as per ANSI B 16.5 |
|
LINING SPECIFICATION |
|
|
LINING MATERIAL |
TEFLON / FEP |
|
LINING THICKNESS |
3to8 MM ALL WETTED PARTS |
|
TEMP. WITHSTAND |
205°C TEMP. MAX. |
|
TEST PRESSURE |
20 Kg / Cm² |
| SPARK TEST | 15 KVDC |
All dimensions are in mm, unless specified.
